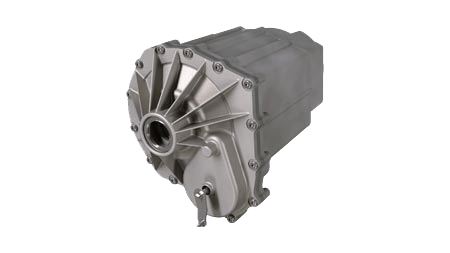

Electric Drive Modules

Electronics

Full Integration for smallest package
and lowest complexity
CAN/CAN FD, FlexRay optional
State of the art Power Electronics
for lowest losses
Full Software Functionality with option
for high level controls as vehicle dynamics
and energy management
ASIL D Capable, AUTOSAR
Scalable Design

Electrical Machine

IPM Machine
Optimized for highest drive cycle efficiency
Fully integrated with the transmission
and electronics
HVH/SW Technology for small package
and high efficiency
Developed and optimized for iDM in terms
of NVH and integration
Scalable design

Transmission

2-Stage Reduction
Ratio 11 –12.5:1 for iDM
Optimized for high drive cycle efficiency
and lowest system NVH
Innovative passive lubrication system
for lowest losses
Optional Park-Lock System with integrated
Actuator/ECU
Scalable Design
