Features / Benefits

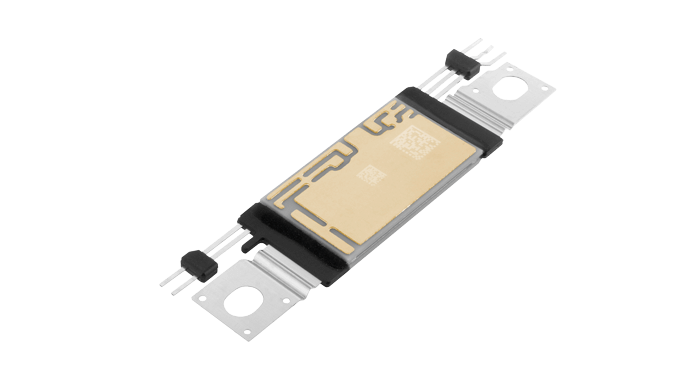

- Viper power module includes dual-sided cooling for enhanced thermal management
- SiC helps extend PHEV and BEV range by approximately 5% and enables faster charging times - delivering a better solution with more power, in a smaller package and for less cost.
- Award winning, patented technology eliminates the need for wired bonds or connections that can be the cause of quality and reliability issues.
- Optimizes switching and conduction to deliver up to 70% reduction in power loss
Product Sheet

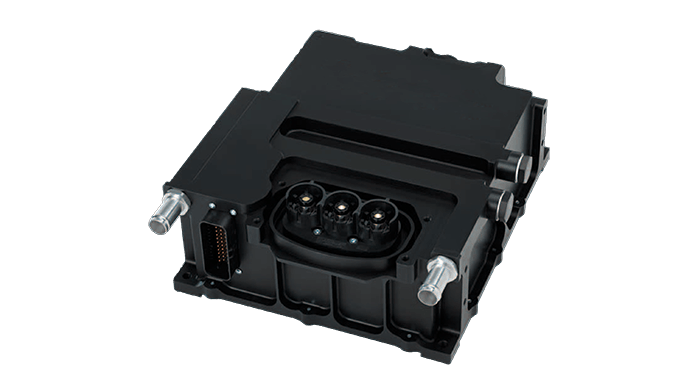

Compact silicon carbide MOSFET performance inverter platform (SiC-PP).
Lighter, more efficient, and more compact.
Thanks to the advanced architecture of the SiC-PP, it is possible to meet a wide range of performance and use cases, from ground transportation to aviation applications. The advantages of SiC semiconductors have been optimally exploited to achieve the best balance of performance, weight and cost.
Product Sheet
for mobile applications

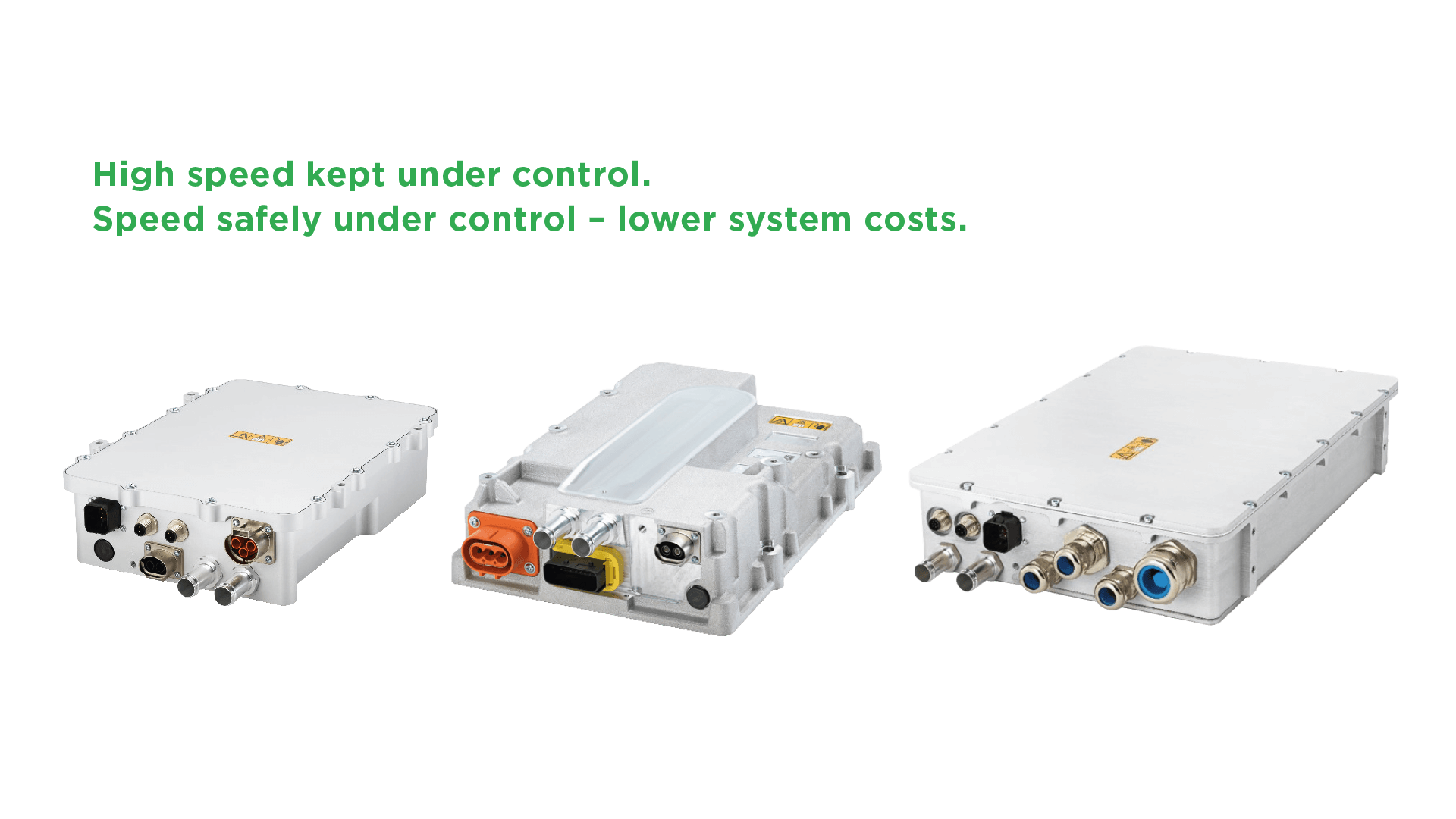

Multilevel Highspeed Inverter
High speed kept under control – with low system costs.
.png?Status=Master&sfvrsn=7040cd3d_10)
-
Features

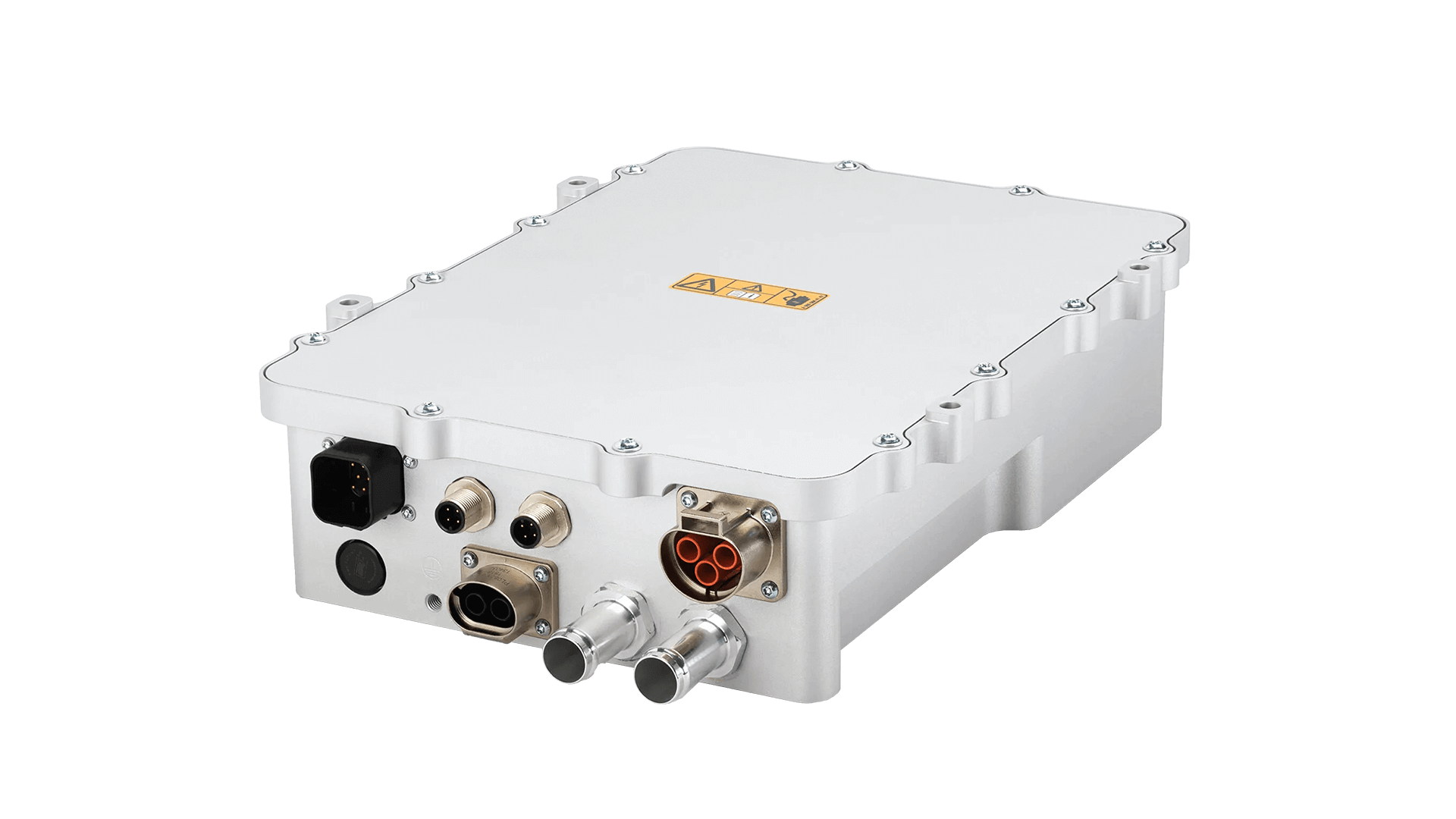

MLI 30
- DC supply voltage up to 800 VDC
- Nominal phase current up to 30 ARMS
- Stator frequency up to 3,000 Hz
- PWM switching frequency up to 50 kHz
- CAN interface
- Field-proven sensorless speed and torque control
- Liquid-cooled, inlet temperature <70°C (under full load conditions)
- IP67 enclosure

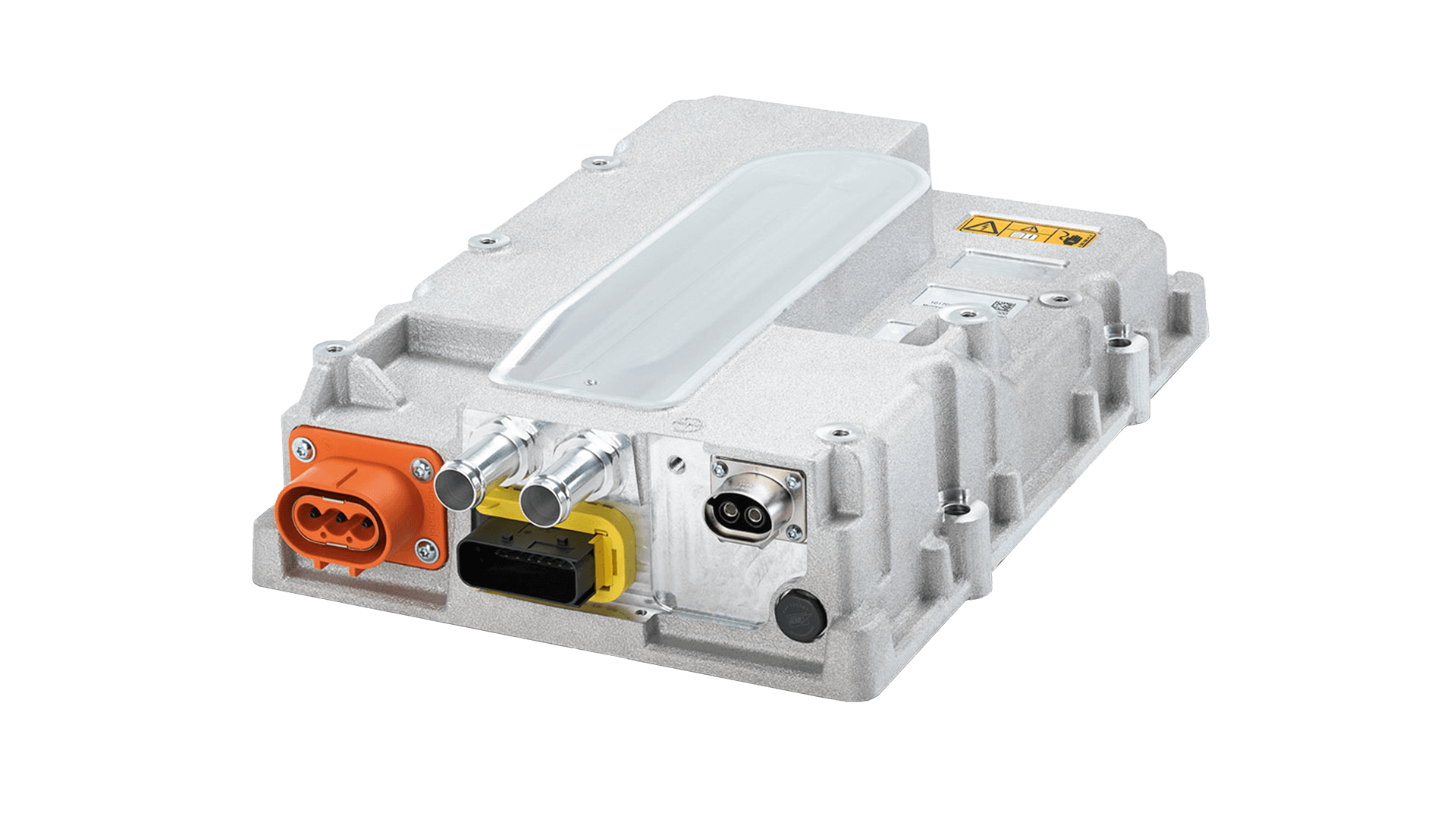

MLI 55
- DC supply voltage up to 850 VDC
- Nominal phase current up to 55 ARMS
- Stator frequency up to 2,500 Hz
- PWM switching frequency up to 46 kHz
- CAN interface
- Field-proven sensorless speed and torque control
- Liquid-cooled, inlet temperature < 70°C (under full load conditions)
- IP6K9K, IP67 enclosure

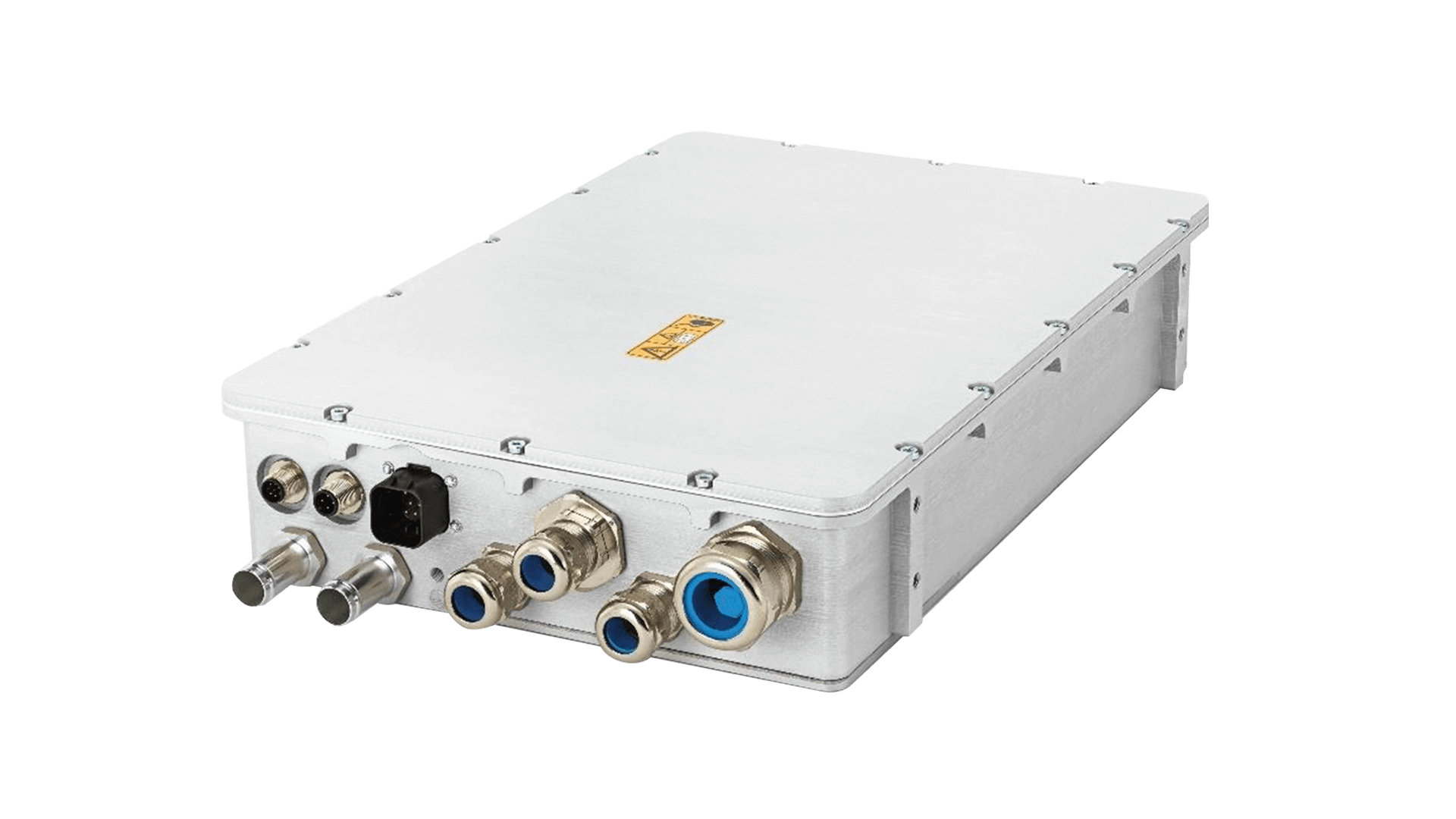

MLI 110
- DC supply voltage up to 800 VDC
- Nominal phase current up to 110 ARMS
- Stator frequency up to 2,500 Hz
- PWM switching frequency up to 35 kHz
- CAN interface
- Field-proven sensorless speed and torque control
- Liquid-cooled, inlet temperature <60°C (under full load conditions)
- IP67 enclosure
-
Benefits

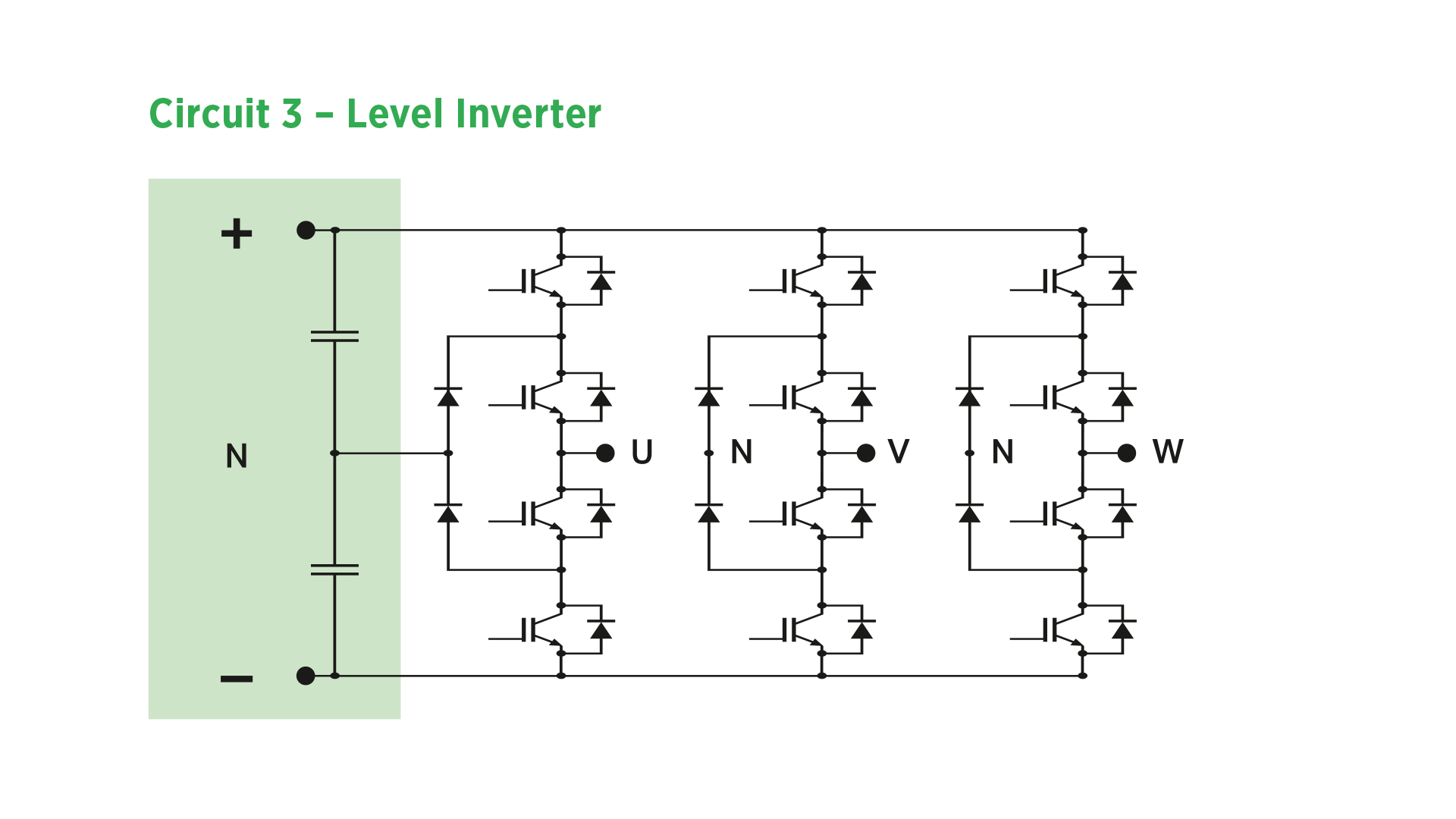

- Circuit 3 – Level Inverter

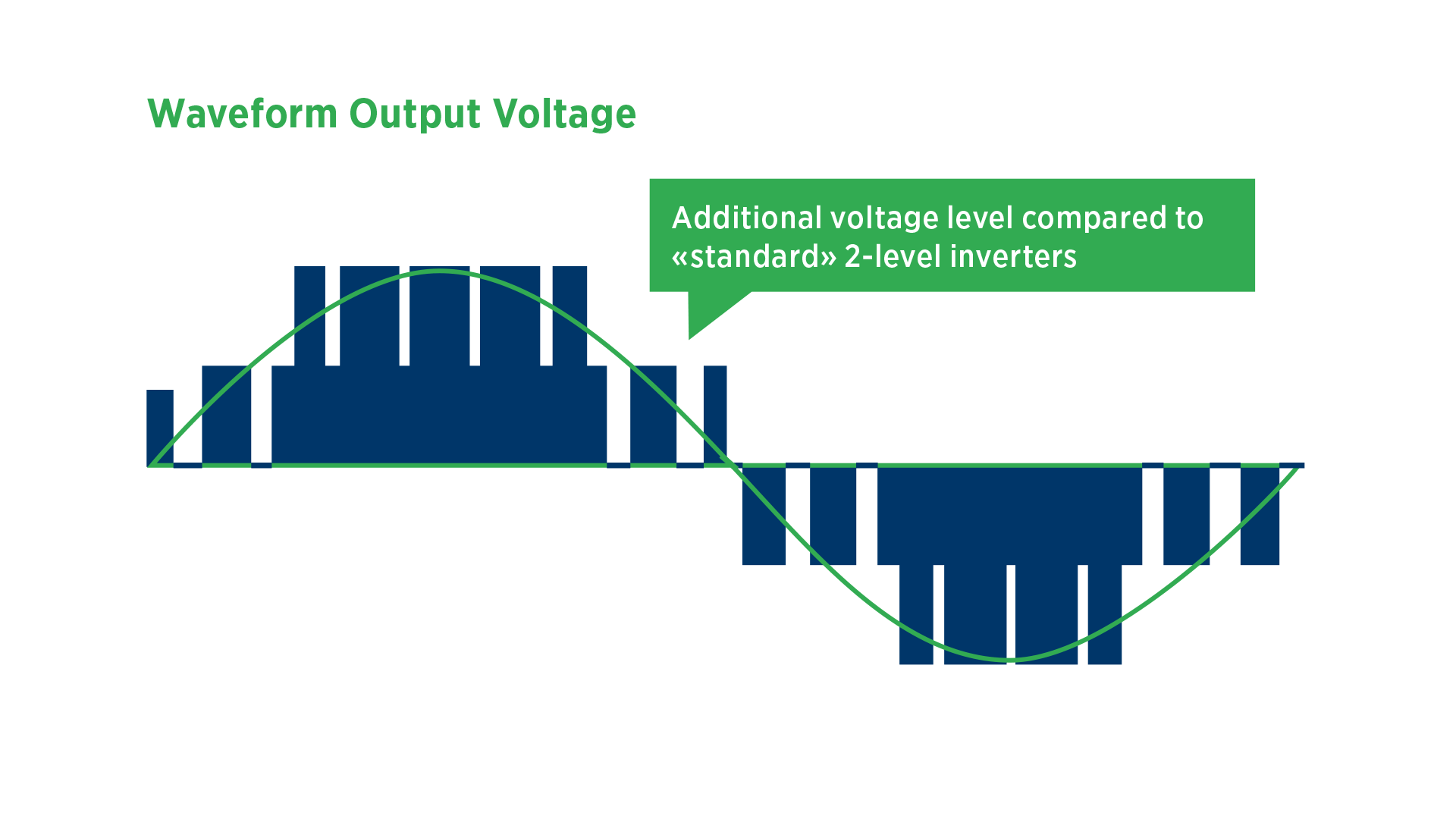

- Waveform Output Voltage
- Additional voltage level compared to «standard» 2-level inverters
-
Downloads
for stationary applications

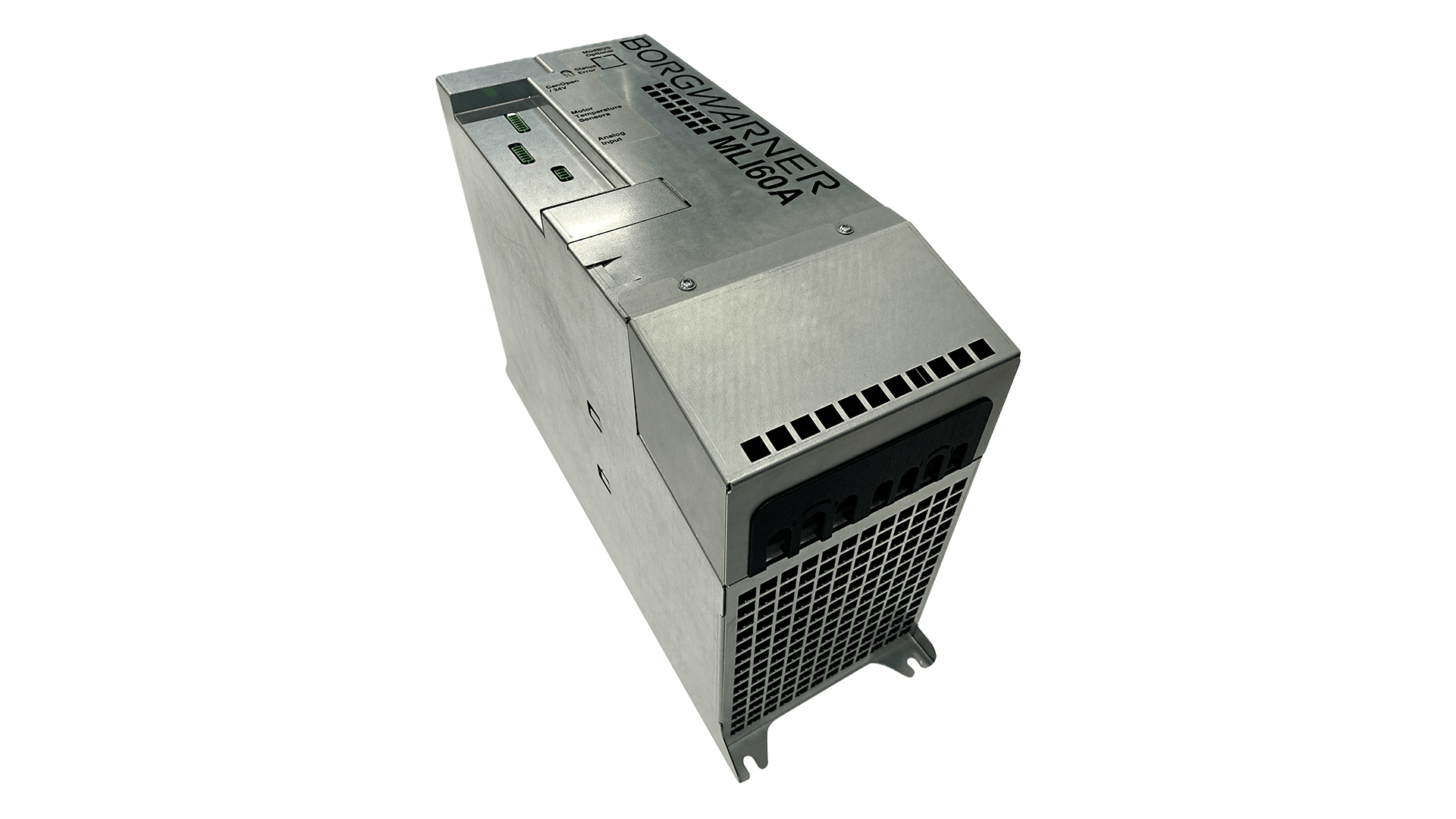

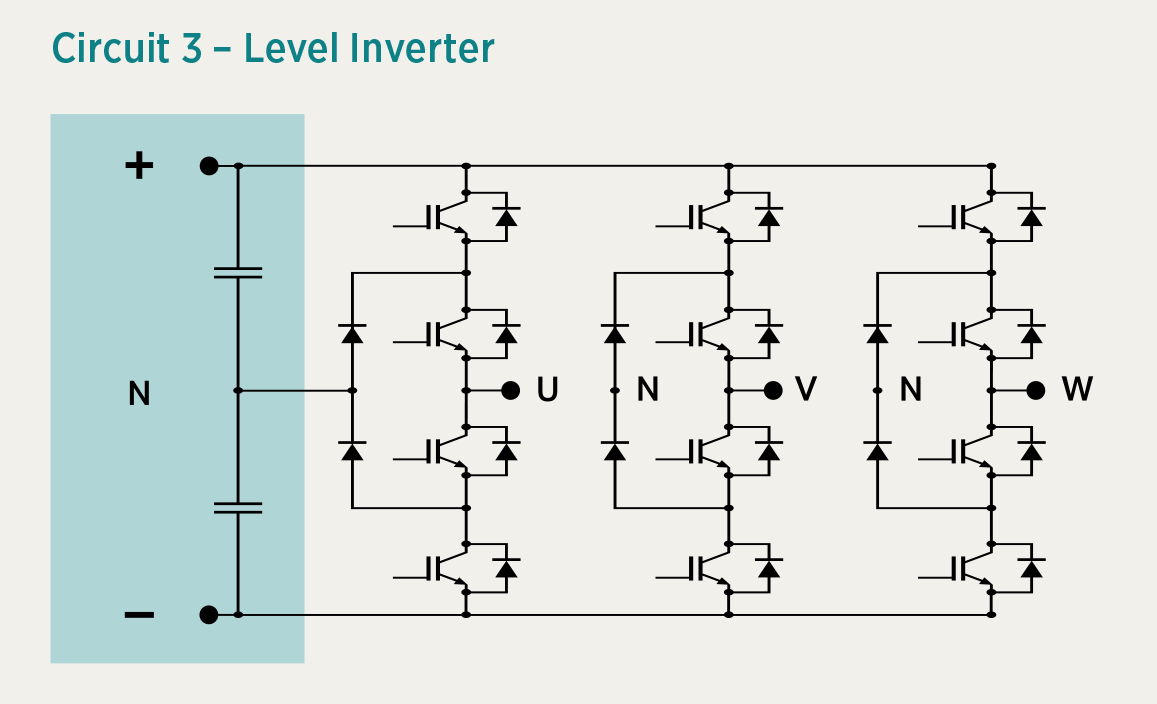

Multilevel Highspeed Inverter MLI60A
Inverter for Industrial High-Speed Motors and Generators.
-
Features
- DC supply voltage up to 800 Vdc
- Nominal phase current up to 60 Arms
- Stator frequency up to 3,000 Hz
- PWM switching frequency up to 46 kHz
- CANOpen (ModBus TCP/IP on request)
- AC input with integrated passive front-end (PFE) option available
- Field-proven sensorless speed and torque control
- 55°C max. air temperature
- IP20 enclosure
-
Benefits
- Additional voltage level compared to «standard» 2-level inverters
-
Downloads
.png?sfvrsn=1b07973c_7 "Combined Inverter (CIDD)")
Combined Inverter & DC/DC Converter
Features / Benefits
- Compact and scalable power devices with zero wire bonds to enhance reliability
- Available in a range of customisable product capabilities
- Scalable design to meet range of power and fusing
- Auxiliary power connector options available such as fusing for ELAC (electric AC compressor)

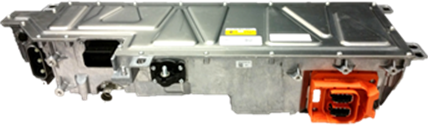

Dual Inverter
Features / Benefits
- Reduces cost by integrating two inverter stages into a single compact package
- Highly rugged design capable of withstanding high vibration
- Suitable for transmission on motor-mounting
- Provides propulsion, energy generation, and re-capture in front wheel drive hybrid powertrains
Combined Solution - 'All In One Box'
Features / Benefits
- Provides maximum packaging flexibility and space savings
- Allows for simpler installation, maintenance and repair procedures
- Offer a full range of customizable combinations and options E.g. - Dual Inverter + DC/DC Converter + Hybrid Controller

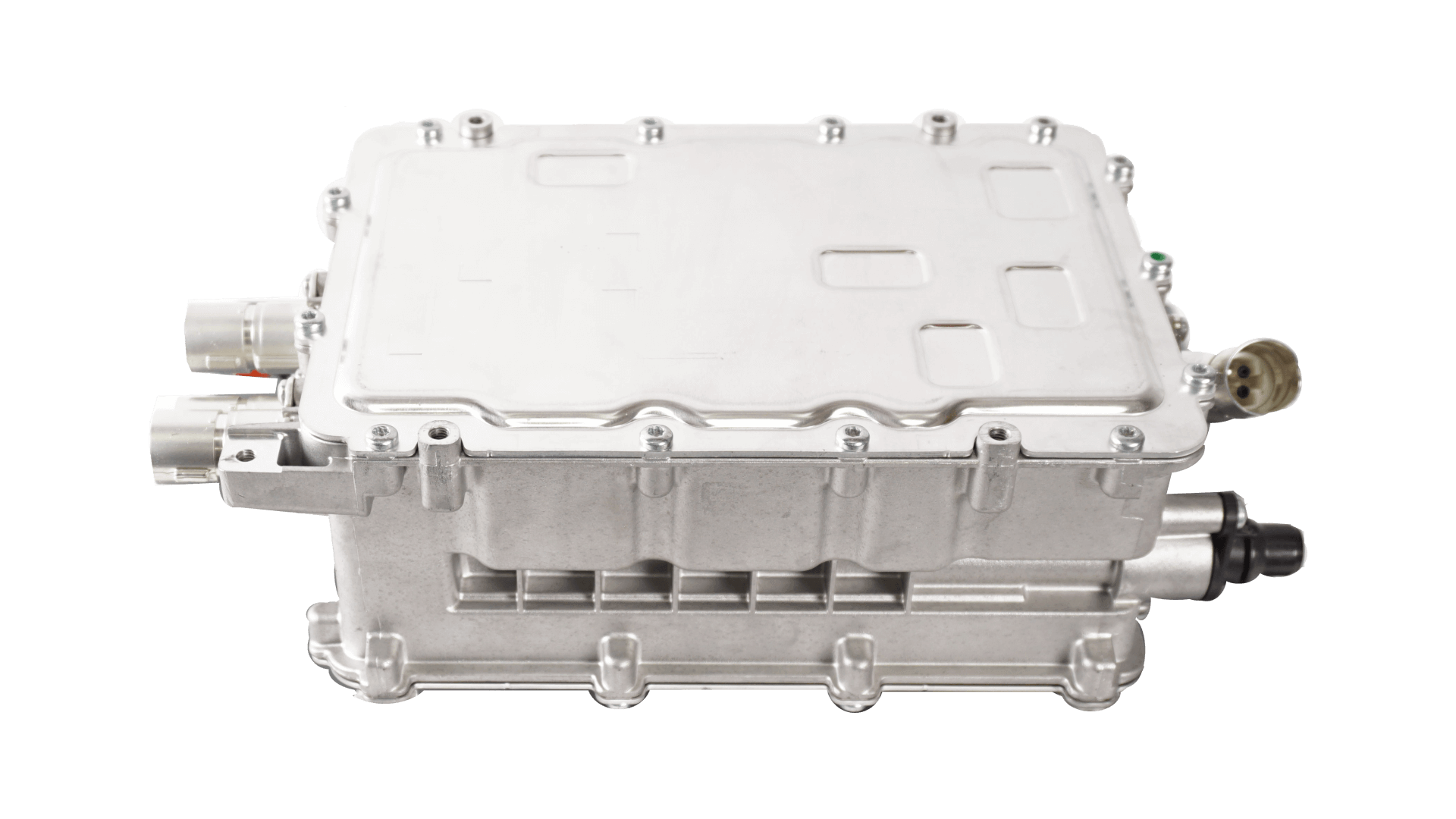

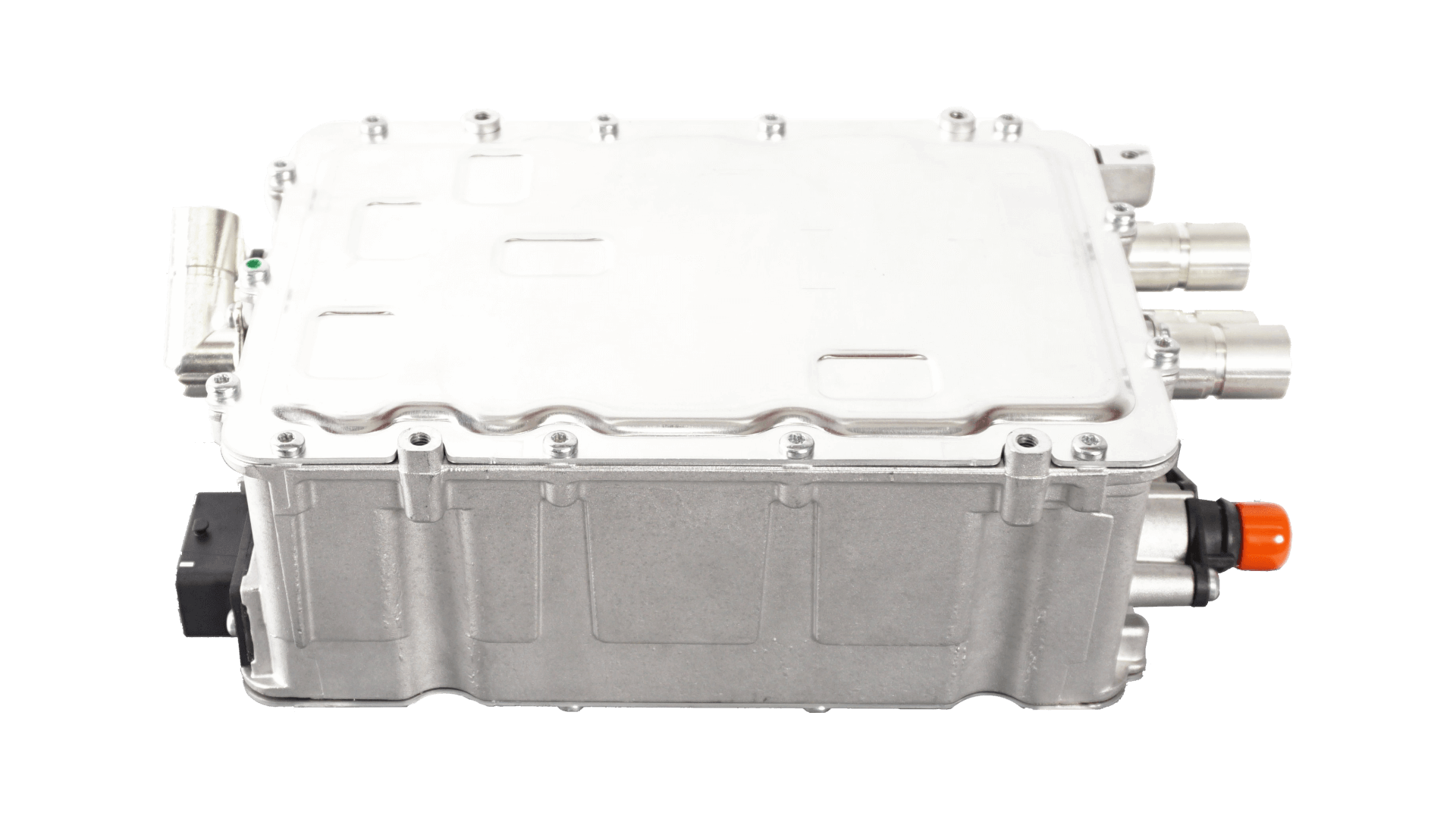

Onboard Battery Chargers (OBC)
BorgWarner’s new Onboard Battery Charger converts AC electricity to DC for charging batteries in hybrid or electric vehicles
-
Features
- State of the art power electronics
- Extended range AC input – 7.4kW, 11 kW and 22 kW Power Rating
- Liquid-cooled IP6K9K enclosure
- ISO 26262
- Mode 2 and Mode 3 basic signal charging plugs compliant
- On customer request CHAdeMO, CCS and GB/T with an external EVCC
-
Benefits
- Highest efficiency pioneering silicon carbide technology
- Maximum performance integrated power factor correction
- Best in class power density
- Compatible with batteries of any chemistry: 400V, 650V and 800V voltage range
- Isolation between Mains input and DC-output
- All battery powered and plug-in hybrid vehicles
-
Downloads
Isolated DC/DC Converters
Our isolated DC/DC Converters utilize a highly-flexible architecture to deliver a unique, feature-rich set of functions and is well-matched to the electrical system needs of manufacturers.
These DC/DC converters offer manufacturers a highly efficient, compact and rugged suite of products to meet their requirements.

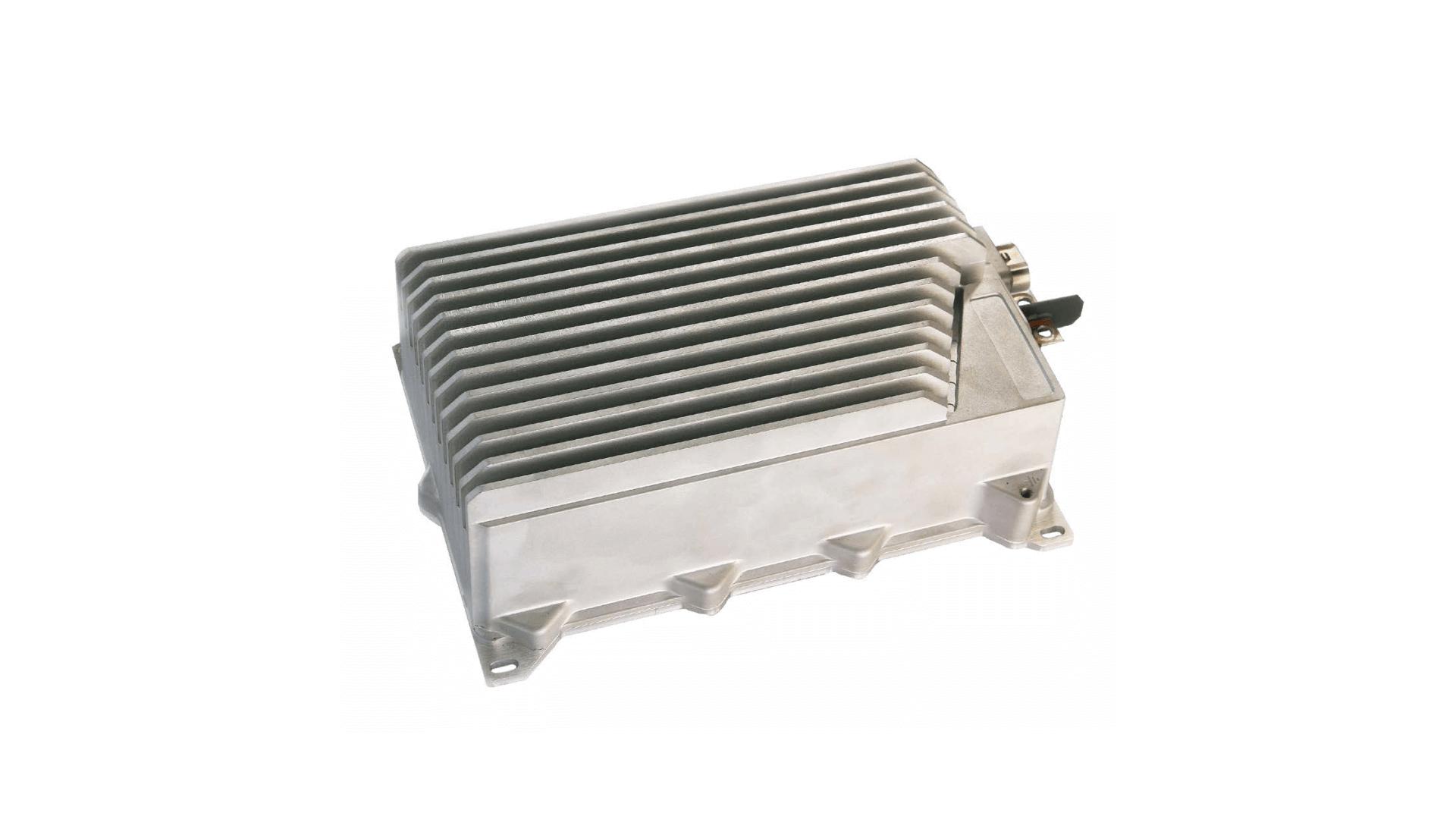

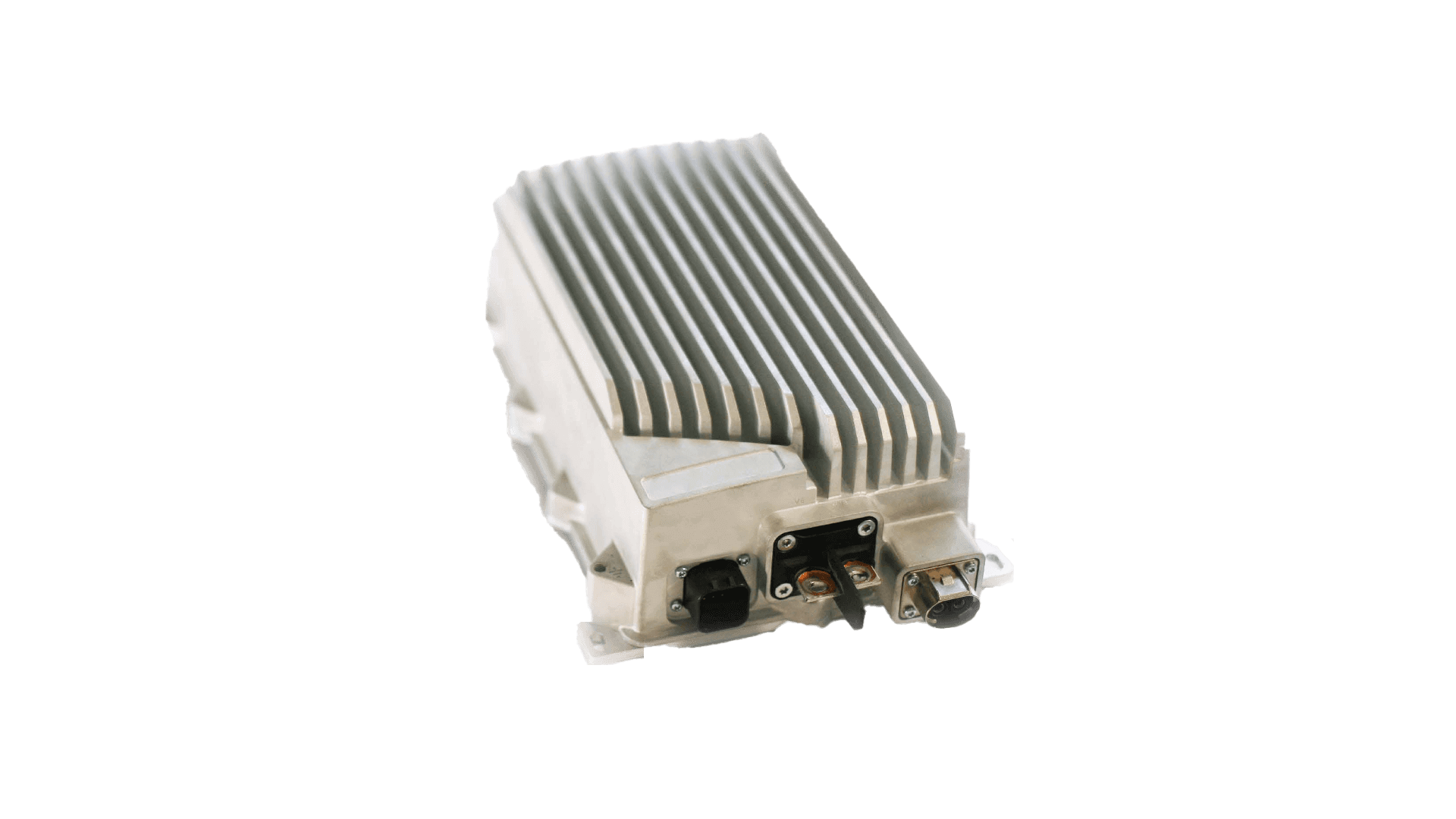

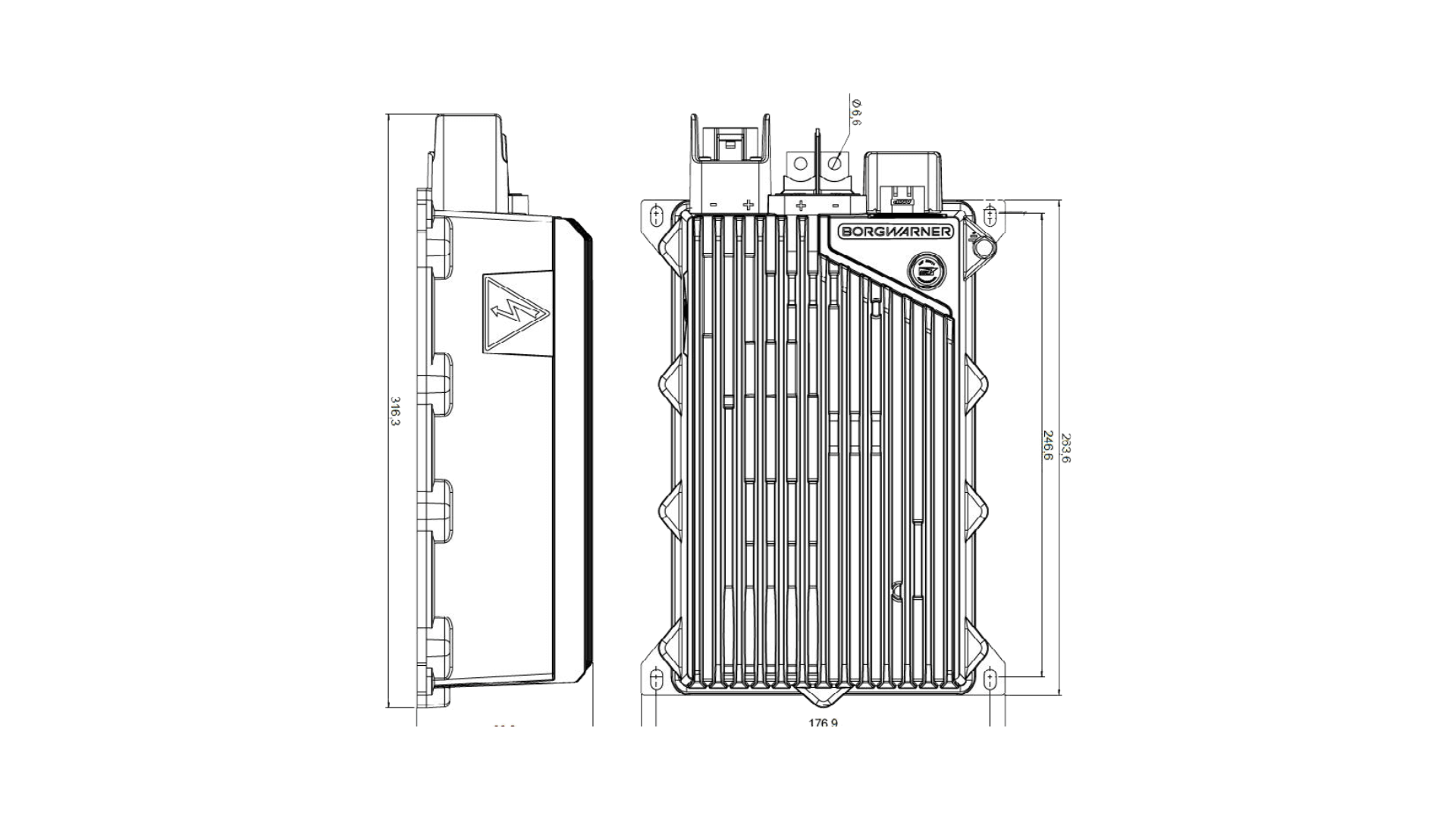

High Voltage DC/DC Converter Gen5
The Gen5 range of products is well matched to satisfy the electrification needs of automotive, commercial and construction markets. The High Voltage DC/DC converter is specifically aimed at vehicle OEM’s and system integrators
to offer a compact, lightweight, rugged and cost effective class leading solution.
-
Features
- Air cooled
- Wide in put range 220VDC to 800VDC
- Output voltage configurable from 12V to 14.5V
- 1.2kW Output power per unit
- High Efficiency >92% from 50% to 100% load
- Parallel connection of multiple units for increased power or redundancy
- Environmental: –40°C to +80°C (air cooled) operation, IP67
- Controllable over CAN or digital I/O (enable and power okay signals)
- Dimensions: 267mm x 176mm x 93mm
- Weight: 4.4kg
-
Benefits
The unit can be enable, disabled and monitored using CAN communication messages if required, the functionality
provided includes:- Output enable/disable function
- Output voltage setting
- Output current setting and limiting
- Monitoring of status and operational values
-
Downloads
48V DC/DC Converters
Features / Benefits
- Supports 12V or 24V low voltage systems
- Available in liquid-cooled or air-cooled specification
- Highly efficient energy conversion capabilities
- Bi-directional functionality
48V DC/DC Inverter
Features / Benefits
- Flexibility to integrate with various e-machines architectures
- Design flexibility to work with OEM-directed motor suppliers
- Available in a variety of power ranges to meet application needs
- Highly efficient power management
High Voltage Controllers
The family of high voltage controllers cover the voltage range from 150V to 800V and is specifically aimed at vehicle OEMs and system integrators to offer them a compact, lightweight, robust and cost-effective, class-leading suite of solutions covering traction, hybridization, power generation and sub-system electrification.
Product Sheet

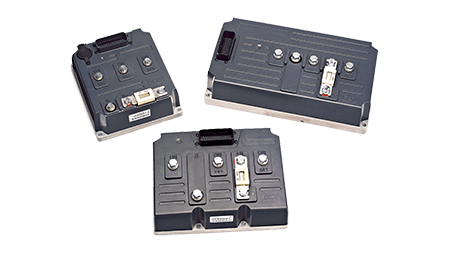

Low Voltage Controllers
The family of low voltage controllers cover the voltage ranges from 14V to 150V. With their high reliability and compact dimensions our motor controllers are used on both pump and traction applications in some of the worlds leading material handling vehicles. They are also ideally suited for use on a wide range of light on-road and off-road vehicles.
